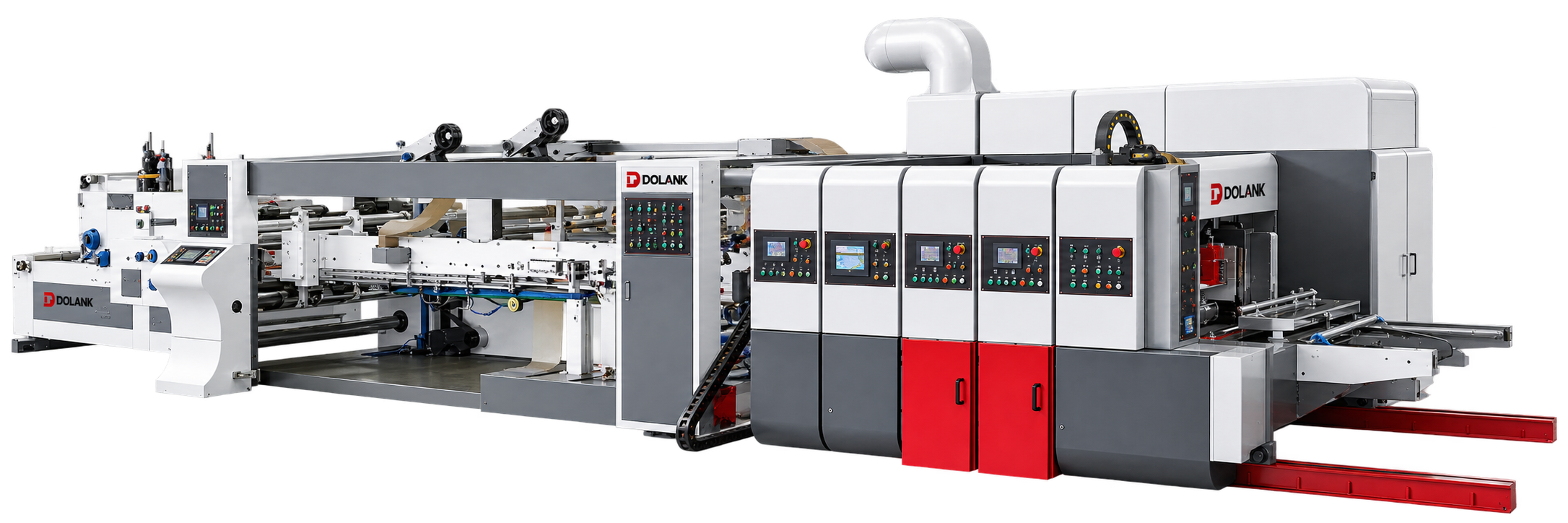

All – computer high – speed ink – ink printing adhesive box linkage line
Advanced adsorption front feeding system, simple operation, high precision.
7 “true color touch screen can be installed to pre-set 200 orders, order inquiry, zero order
input, machine synchronous reset to zero, phase automatic/manual adjustment, machine
parameter management, lifting plate uniform manual/automatic control, automatic display of
production quantity and production speed and set production quantity.
All rolls are made of high quality steel, plated with hard chrome, and surface lapping. The
rotating gear is made of high quality alloy steel, after heat treatment and grinding.
Clearance adjustment adopts high precision turbine box self-locking adjustment, and is
equipped with three-rod disc handle seat, convenient and quick.
The grooving part adopts electric control to adjust the axial, longitudinal and box height
dimensions of each tool holder.
Die – cutting speed compensation system, CAM – type soft roller transverse swimming
40mm, rubber pad wear uniform, improve the use of rubber pad, reduce the use cost.
The use of the down – insert type of paper out, not because of the cardboard or no
adhesion and collapse, so as to improve the stability of the equipment paper out, to ensure the
quality of the adhesive box.
PLC program control, according to the input order parameters automatically adjust.
The equipment has a secondary indentation and a right Angle finishing mechanism, which
has stable and reliable performance and can perfectly control the gap size after folding.
Down folding and gluing machine:
The down-folding gluing machine adopts down-inserting type paper outlet, which
will not collapse because of the cardboard or no adhesion, thus improving the
stability of the equipment paper outlet and ensuring the quality of the gluing box.
PLC program control, according to the input order parameters automatically
adjust.
The equipment has a secondary indentation and a right Angle finishing
mechanism, which has stable and reliable performance and can perfectly control
the gap size after folding.
The right-angle finishing mechanism of the equipment is driven by a separate
motor, which ensures the purity of the power and stable and reliable operation.
Even if the slotted pressure line is not good, through
Our secondary pressure line and right Angle finishing mechanism, also can
control the adhesive gap, the size of the gap can be adjusted arbitrarily.
Second arrangement of the mechanism, can completely solve the scissors. The
stacking counting position is provided with a secondary arrangement mechanism.
PLC program control, according to the input order parameters automatically adjust.
The equipment has a secondary indentation and a right Angle finishing
mechanism, which has stable and reliable performance and can perfectly control
the gap size after folding.
