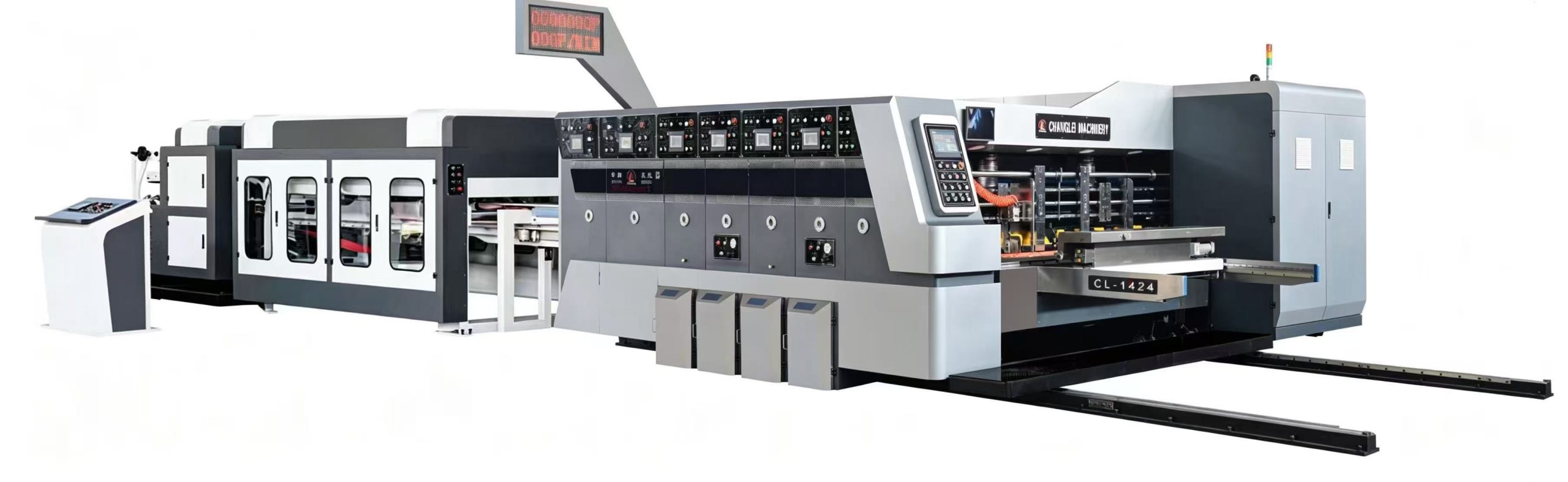

FULL ADSORB COMPUTER INTELLIGENT HIGH‑DEFINITION INK PRINTING SLOTTING AND DIE‑CUTTING MACHINE
The whole line is designed and made for high quality,high speed,high efficiency,high stability and high safety,convenien for quick order update and operation. Made of high quality materials and parts.
Well hardened and ground transmission gears with hardness more than 60(HRC). Auto zero return and auto reset.
All gaps between cylinders and roller are computerized or motorized adjustment.
Vacuum transfer system for all printers.
Key-free connection rings to reduce central wear to keep stable precise printing.
All cylinders and rollers are hard chromed for ideal hardness.
Use imported PLC. touch screen for multifunctional control.
Able to save daily orders to speed up the order update. All electric, electronic and pneumatic components are of European standards.
FEEDING UNIT
Electric machine clutch, with alarm, the road between the continuous ringing, ensure worker safety.
Around the bezel, push the cardboard box after blocking osition, with electric adjustment and computer numerical adjustment.
Brush with wind suction dust removal devicecanremovelotof cardboard printed surface impurities, improve print quality.
Host variable frequency control, start, smoothoperation, enery savings of 30%. Infrared photoelectric counter, the preset number of orders processed.
Online total lock function to prevent misuse damage the machine (host starts, each unit is automatically locked).
Choose continuous or skip feeding
Pneumatic elastic feed roller, do not undermine the strengthof corrugated board; under the feed roller gin, hard chrome plating.
Side fences and slotted portion FBI, there are trimming can be done with or without trimming adjustment, saving time and effort, and the installation of pneumatic beat together means more accurate lateral positioning of cardboard to avoid waste. After the kick-type feeder or optional front feed.
PRINTING UNIT
All and roller are made of high quality steel, computer dynamic balance, eliminating centrifugal force, grinding, hard chrome plating.
Printing phase using planetary gear mechanism, PLC touch screen control, and electric digital360 adjustment.
Roller sliding touch screen control, and electric digital adjustment, a total adjustment range10mm.
Ink monitoring system, low ink detector.
Hanging devices are adopted, the full version and edition half hanging version trough, foot switch control rotating, plate loading and unloading quick and easy.
Ink set gap, the printing press roller, guide roller gap with fast spanner-free adjustment.
Printing phase fixing adopts pneumatic brakemechanism, when the unit is separated from the host to limit rotation of the brake mechanism, keep the original gear fixed point position unchanged
Rubber roller, wear rubber wrapped steel pipe surface, high special grinding,good ink transfer effect
Steel roller, steel surface grinding, pressing textured, hard chrome plating (optional ceramic roller).
Pneumatic lift version of the device, when the host is stopped, anilox automatically from the automatic uniform ink to prevent ink dry stagnation.
SLOTTING UNIT
All the carton size, box high phasecompleted by computer,humanmachine interface, saving time and effort, improve work efficiency, can store 999 common orders.
Uniaxial pole structure, pre-press, press twice better real pressure line, pressure line carton forming effect.
Slot knife, creasing wheel, trimming knife sliding structure using precision ball screw, high precision movement, the upper and lower blade meet more accurate positioning effectively extend tool life.
Elastic structure Cutaway knife and cut off three, five cardboard without adjustment.
Slotting cutter made o high quality steel, heattreated grinding, hardness and toughness is superb, long service life.
I Necessary optional punch, fight hand-clasping means.
DIE-CUTTING UNIT
Cutting knife phase, computer and electric digital control.
Cutting knife horizontal adjustment, computer and electric digital control, control a total of10mm.
Cushion roll cutting Shuhei institutions, padsca be used repeatedly, the cost savings can be substantial.
Cushion roll laterally + 30mm swimming mechanical device to increase the die pad life. The die equalizer provideswire-speedcompeio ensureconsistent size carton forming pad after repair.
