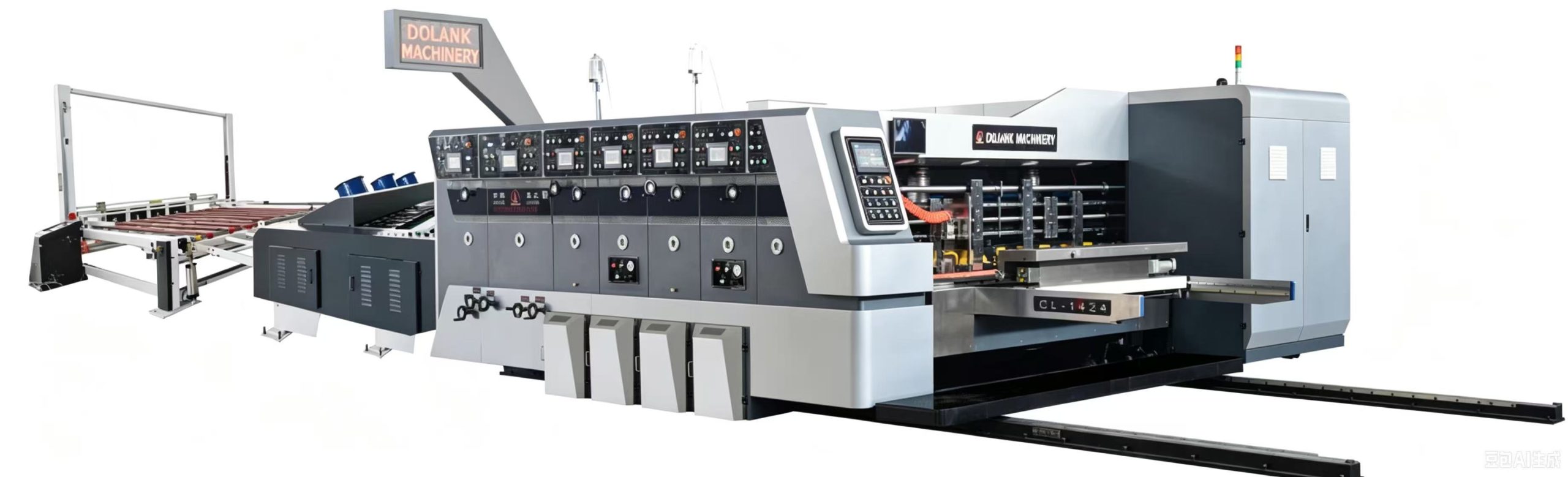

- Adopting advanced vacuum absorb lead edge feeding system, with stable high speed, easy operation and high accuracy.
- 7 inch color touch screen, pre-set 200 group ordeers, order inquires, zero-order input, synchronous zero, the automatic /manual adjustment of phase. management of the parameters, up and down the plate, auto/semi-auto inking, automatic display of the production and speed, and setting of the quantities.
- All the drive rollr adopted hghqualityste ateriahard hrmiumplating ad te surface treated by lapping finish. The drive gears adopt high quality alloy steel, after heat treatment and lapping finish.
- Interval of all the roller is adjusted by high preciseworm box.With three disk handle seat, convenient and swift.
- Motorized electric numerical adjust the Axial and vertical movement of the knife seat and height of the carton.
- Speed difference compensation system is equipped with Die cutting unit Axially conjunct moving of the cam type soft roller is 60mm, uniform wear and tear, raise the occupation of the gum cover, save the cost.
- Suitable for 3/5/7layer corrugated paperboard, as well E flute paperboard.
- The phase is driven by servo motor to make the adjustment more rapid and accurate.
FEEDING UNIT
Advanced leading edge paper feeding system, simple operation and high precision.
Left and right baffle positions areelectrically adjusted by theleadscrew. Separate sheet feed function, you can choose to feed the sheet according to your needs, toensure that largersize cardboard can also be processed
Install 7-inch true-color touchscre,automaticmanual adjustmet of phase, machine parameter management, manual/automatic control of ink leveling of the lifting and lowering plates, automatic display of production quantity and production speed and setting production quantity.
The back and forth paper holder is manually controlled before and after to speed up the setting speed.
PRINTING UNIT
The reference line is engraved in the horizontal and circumferential directions of the roll body to facilitate plate alignment.
The ratchet wheel fixed plate winding shaft hanging plate is equipped with left and right locking devices to make the plate hanging alignmentfaster and more accurate
Install a foot switch to control the positive and negative rotation of the plate loading drum for easy plate changing.
The printing phase is drivenby servo motor and adjustedby digital360(both running and stopping can be adjusted).
In order to ensure that the unit has a unified adjustment benchmark, the correct position can be adjusted by trial printing one sheet, so as to reduce the waste of paperboard.
The pneumatic anilox roller automatic lifting device and idling device lower the anilox roller to contact the printing plate during paper feeding
The phase is driven by servo motor to make the adjustment speed more rapid and accurate.
SLOTTING UNIT
All the carton size, box high phase completed by computer, human-machine interface, saving time and effort, improve work efficiency, can store 999 common orders.
Uniaxial pole structure, pre-press, press twice better real pressure line, pressure line carton forming effect.
Slot knife, creasing wheel, trimming knife sliding structure using precision ball screw, high precision movement, the upper and lower blade meet more accurate positioning effectively extend tool life.
Elastic structure Cutaway knife and cut off three, five cardboard without adjustment.
Slotting cutter made of high quality steel, heat treated grinding, hardness and toughness is superb, long service life.
Necessary optional punch, fight hand-clasping means.
CLEAR WASTE PAPER & STACKER UNIT
Stacker height can be up to 1700mm.
Platform lifting is driven by strong chain. Lifting motor with brake function, to maintain a fixed position without sliding.
With the stacking of paperboard, the platform will ift automatically. When the paperboard is piled up to predetermined height t peumaic lifting mechnim will automatically open to catch the paperboard and givean alarm when the paper is full.
Safety protection deviceis installed to make the platform lifting under control and ensure the safety of the workers.
Flat wrinkle climbing belt to prevent the cardboard from slipping
